20÷512 MHz 3-stage RF module 150W
42dB gain
GreenWaves srl presents the design of a new RF amplifier - fully based on GaN technology
covering over one decade bandwidth from 20 to 520 MHz, capable to provide 150W peak power and high gain (≥42 dB).
Lineup includes three cascaded stages: pre-driver / driver / Push-Pull Power Amplifier.
Product comes with mechanical enclosure to guarantee electromagnetic shielding and reliable operation into complex radio systems.
Product is subject to EAR99 Export Administration Regulations.
TYPICAL APPLICATIONS
- Multiband communication systems
- Air traffic control
- Marine communications
- VHF/UHF tv broadcasting
MECHANICAL CONCEPT

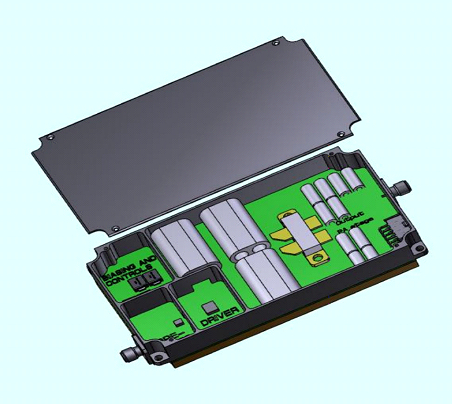

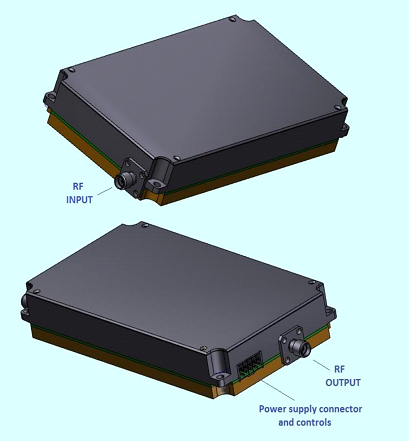

Preview of mechanical assembly is shown in figure below. Lid and internal walls ensure needed
RF separation among different stages.
